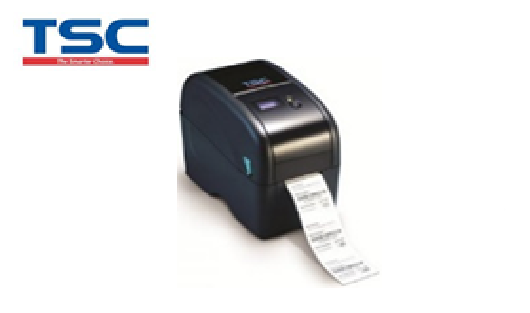

TTP-225

Resolution: 8 dots/mm (203 DPI) / Max
print speed: 127 mm (5"")/second
LCD/LED: 1 LED (3 colors: green, amber & red)
SDRAM: 4 MB
Flash: 8MB
microSD card reader for Flash memory expansion, up to 4 GB
Ribbon capacity: 90 m long, max. OD 37 mm, 0.5"" core (ink coated outside)
PCBA1: USB 2.0, RS-232
PCBA2: USB 2.0, Ethernet, 10/100 Mbps
PCBA3: USB 2.0, USB Host, RS-232
PCBA4: USB 2.0, USB Host, Ethernet, 10/100 Mbps
Options: USB host, for scanner or PC keyboard (factory option)
Internal Ethernet, 10/100 Mbps (dealer option)
Bluethooth (user option) / Software
support: SAP, Oracle, WHQL 8.1, Windows, Linux, MAC X.10, Mircosoft SQL Server, Bartender, Nice Label

152.4 mm (6”) per second print speed n 300 meter (984’) ribbon supply on a 25.4 mm (1”) core (coated outside) n 72 to 110 meter (361’) ribbon supply on a 12.7 mm (0.5”) core (coated outside) n 127 mm (5”) OD internal media supply, optional external media holder supports 214 mm (8.4”) OD label rolls on 76.2 mm (3”) core n Print mechanism for kiosk applications n 400 MHz 32-bit RISC processor with 16 MB SDRAM, 8 MB Flash memory for TE200/TE300, and 64 MB SDRAM, 128 MB Flash memory for TE210/TE310 n Internally scalable true type fonts n TSPL-EZD firmware emulates TPLE, TPLZ, and TPLD languages out of the box n Free Windows® drivers and label design software (available via download) n ENERGY STAR® qualified

PRINT METHOD: Thermal Transfer - Direct Thermal
RESOLUTION: 203dpi
MAX PRINT SPEED: 356mm (14")/s
MAX PRINT WIDTH: 104mm (4.09")
MAX PRINT LENGTH: 25,400mm (1,000")
PROCESSOR: 32 bit RISC CPU
MEMORY: 512 MB Flash, 256 MB SDRAM, microSD Flash memory card reader for Flash memory expansion, up to 32GB
USB host interface for stand-alone applications
Easy to operate with the new GUI design on display
3.5” colour LCD with 6-button control for standard model or 4.3” colour touch LCD panel with 6-button control for advanced model
